R4-D4 Dome work progress 2.6

Some good news and some not so good news.

My 4 pack of fake CCTV dome camera's arrived yesterday. And spent no time stripping two of them apart lol. That was all I could do as the Radar Eye was in work. The other plus is the on/off loop relay unit arrived as well.

The not so good part of the night, was spending hours figuring out how to and the best way to wire up what I had to operate the holo projector circuit 😒
What I have won't do what I want.....so onto plan 'B'......

~~~

To not get distracted with this disappointing evening, tho some bits were actually fun when bits worked, today's efferts are working on the Radar Eye & it's lens.

I taped a piece of paper onto the dome as to where the Radar Eye will go. This was to stop it messing up my nice clean surface lol. I then mixed up some glass fiber and applied it to one side of the eye's cardboard'd edge.

Lunchtime, I got on with cutting the radar eye's lens. I marked in position and then using a saw, cut to size.

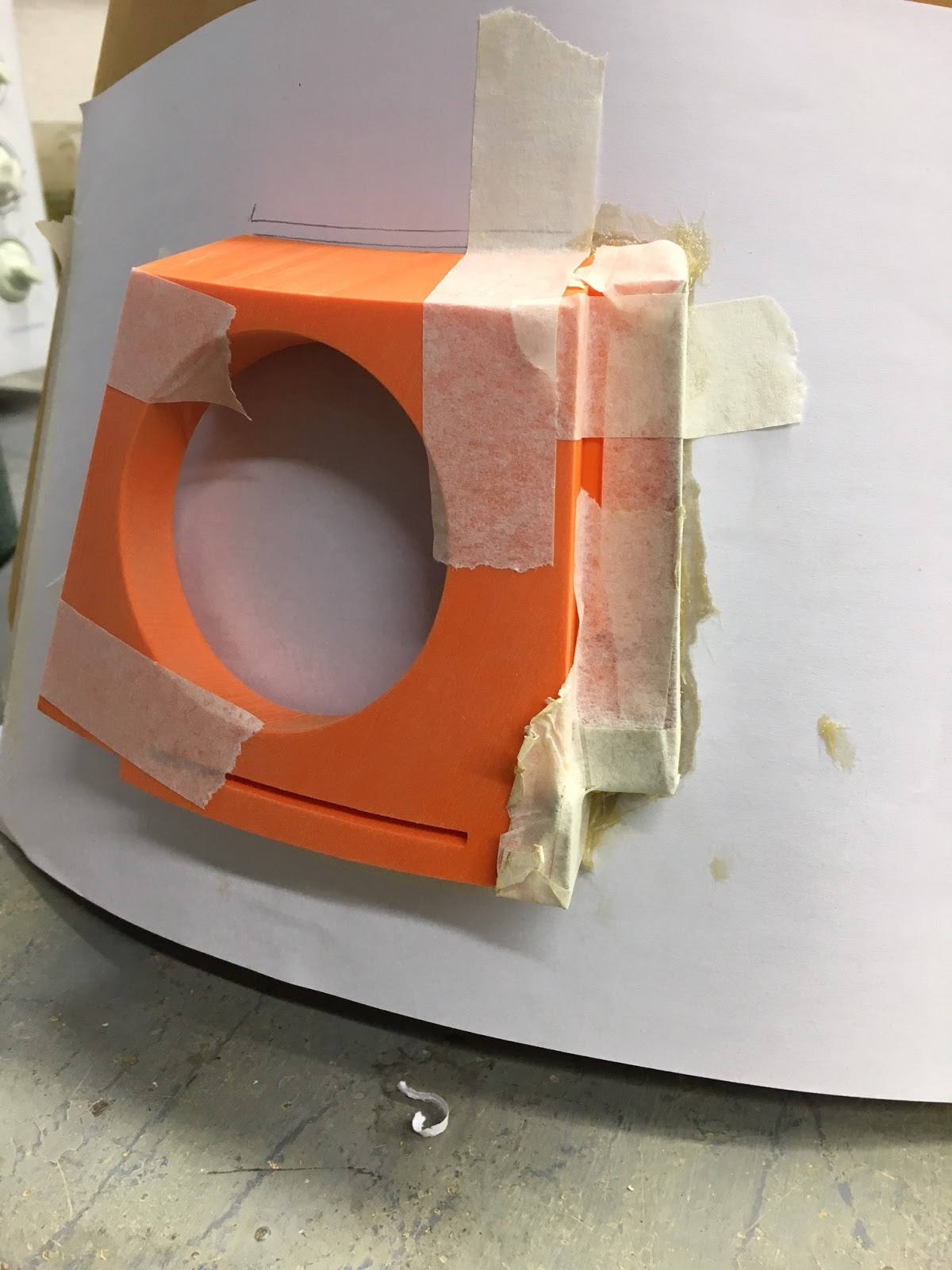

After this I applied glass fiber resin to the other side edge of the radar eye, as the first side had set, as seen in the above pic.

~~~

Marking and grooving out the panels....
There are a few different 'styles' for the panels on an R4. The paint/colour design is another thing too. So I'm going with a standard'ish design.

I started with the 'lid' panel.
Drew on the groove details and then scored and scrapped out the groove detail.

I gave the groove a PVA wash to seal, and then once dried I lightly sanded them.
As the hardboard is only 3mm thick, the grooves are only about a 1mm deep. They are just for effect.

I drew up some templates in cardboard and cut them out. I then started to mark up the panels at the top of the dome.

I'll be taking the dome home again for the weekend, hopefully get some more work done on it then.

Looking forward to Sunday tho as a few members of the UK Builders are coming round to my house.....more info next week.
