Under Shoulder Stabiliser

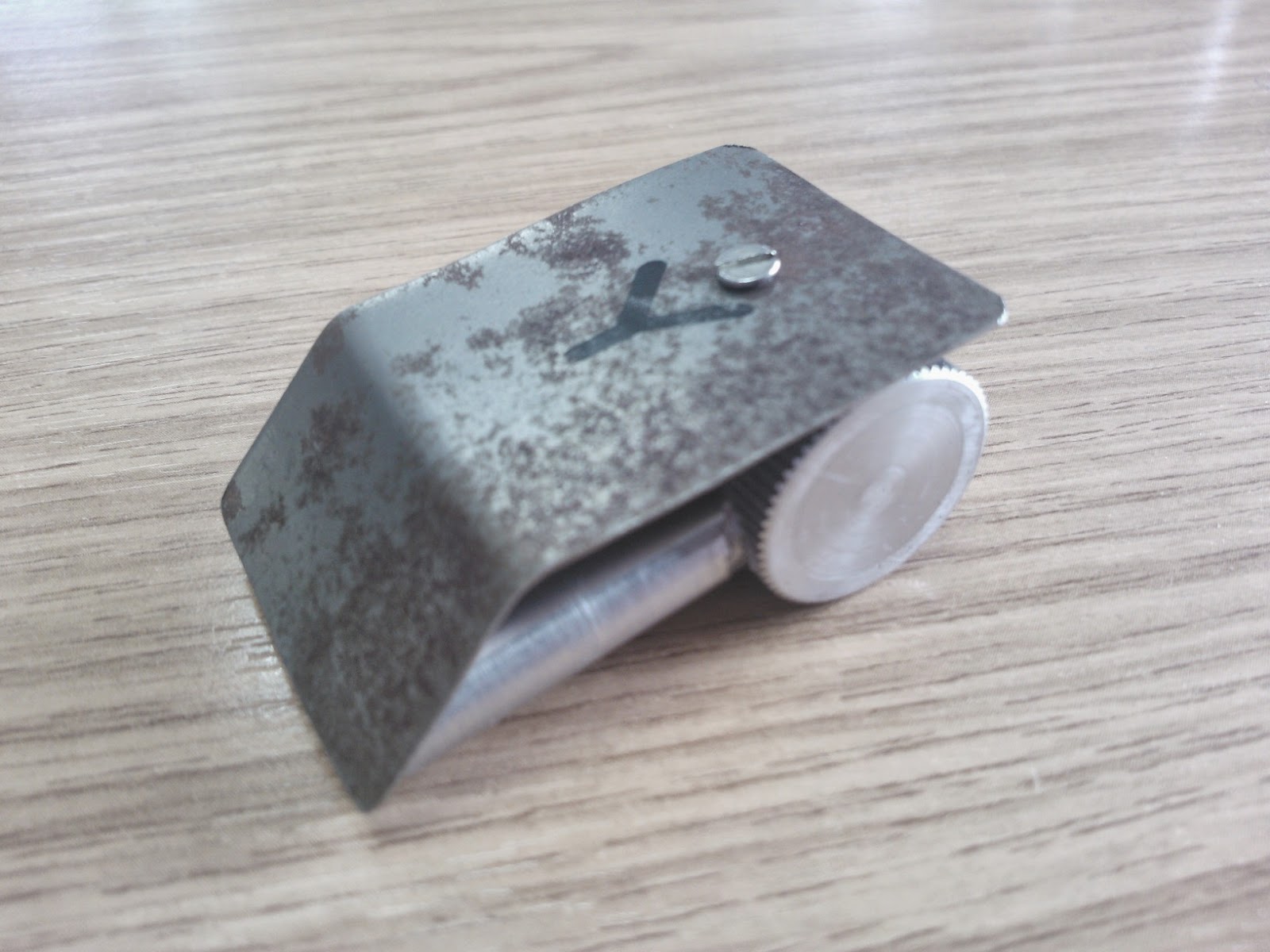

Finally got round to fixing this onto the recessed plate, that I made up. Plate has a clearance hole in it and then I've drilled and tapped a 6BA thread into the Stabiliser and screw fitted.
R5 Stabiliser

R5-D4 detail

R5-D4 detail
This unit then gets silicone applied to it's back and pushed into the recess.
Still have to machine up the last one tho.
