R4-D4 Dome work progress 2.9

Friday, I fitted everything onto the Dome. Used temporary screws to hold the circuit panels in place & wired up the LED's to mini 12v battery. Ready for Saturday at Leamington Spa Wars event, see event report coming soon.
The radar eye still needs work on it, to get the edge fitting nice and tight. And still one last half panel to groove.

See Event Report Blog for Spa Wars at Leamington Spa.

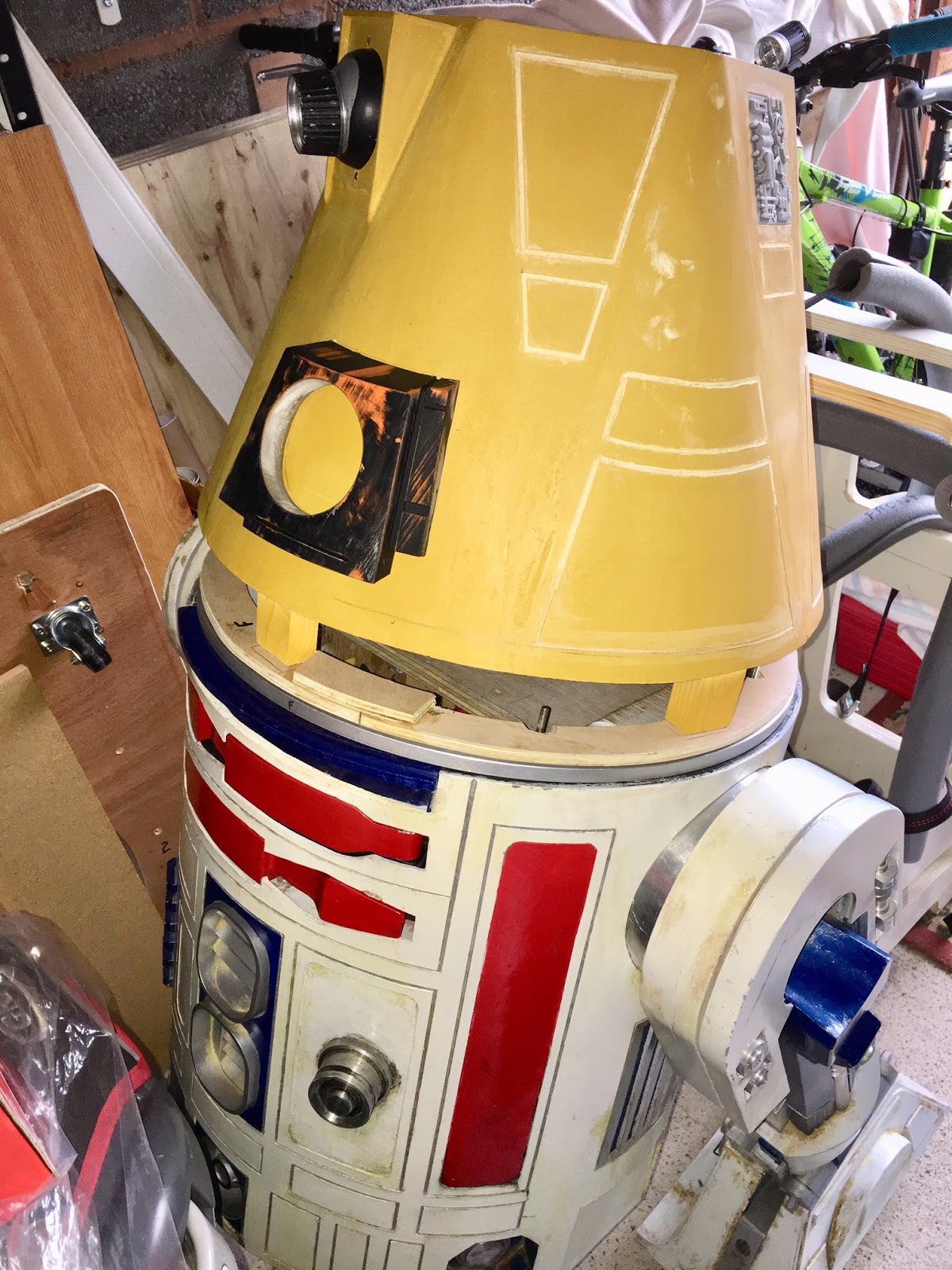

Sunday afternoon, I test fitted the lower location ring onto the domes spacer blocks.

After aligning it up centrally, I measured the height, and yep, in my infinite wisdom, I'd not taken into account the thickness of the location ring....in my defense I have had a lot going on lol.

So next up was to trim the blocks down.


Once this was done, it was a case of screwing the location ring on.


Next up is the bearing location pin blocks.


Marked there rough position on the location ring. Then marked and drilled a slightly over size 5mm hole in them. Once this was done, I then used PVA wood glue to secure them in position & left to dry overnight.
You can see them circled in red in picture above.

Once dried I then drilled holes and countersunk them for clearance, and screwed the blocks in place.


~~~


Been also working on smoothing out the Radar Eye more.
Primer sprayed it (and the lid) the other day.

And sprayed it up metallic Red.
Wasn't impressed with the usual mat black finish.
I still need to work out a paint scheme for the dome tho....
