25/11/2013

R5-D4's Head 4.3 - Pie panel marking's & Motivator position

Using the centre of the dome, the dowel is just still visible, I drew on where the inner and outer diameters are. Gauged against the original pie panel opening. I knew that the centre eye and motivator pie hole were in-line from before I built up the cone, see pic of dome marked out when flat. I then drew on at 90 degree angles, centre lines for these. Next was the other pie holes @ 45 degrees from centre line.

R5-D4 Dome
The plan is to mark and groove the panel 'lids', so watch this space..... Lol.

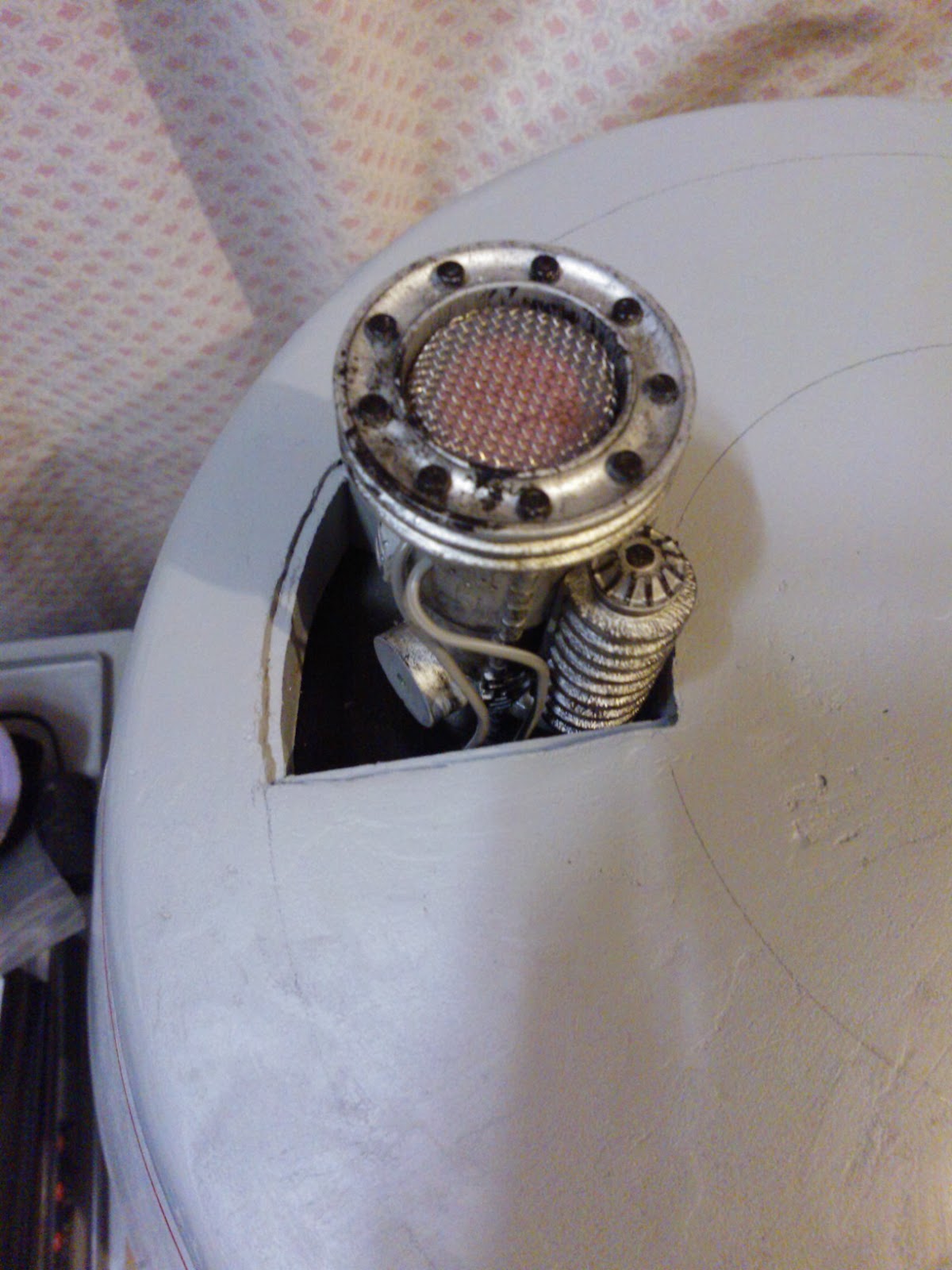

Motivator position:
I plan on moving the motivator further out, so it sits more central in the opening.
R5-D4 Bad Motivator
